Precision Braiding Machines
From elastic fashion cords to heavy-duty safety ropes -- MIIYOUNG's braiding machines deliver consistent quality, flexible configuration, and reliable performance for global manufacturers.
Request a Quote

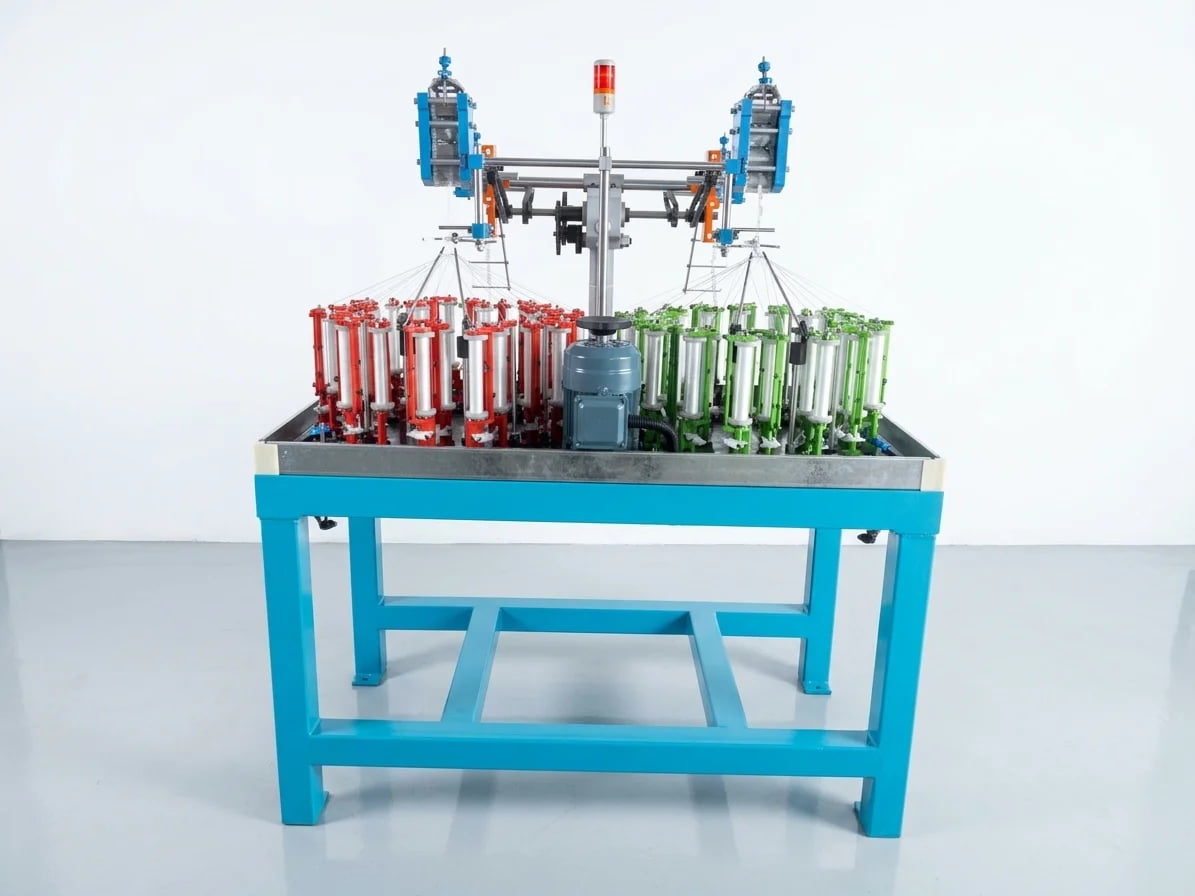

What Is a Braiding Machine?
A braiding machine interlaces multiple yarns or threads in a specific pattern to produce ropes, cords, tapes, and tubular structures. MIIYOUNG's braiding machines are engineered for both elastic and non-elastic applications, giving manufacturers the versatility to serve diverse end markets.
Our machines are classified by spindle count -- odd-spindle configurations are optimized for flat tapes and ribbons, while even-spindle configurations enable the production of hollow flat cords and core-filled ropes such as shoelaces and safety ropes.
All machines support custom spindle counts, speeds, and material compatibility to match your exact production requirements.
Two Core Machine Series
Odd-Spindle Braiding Machine
Designed specifically for flat braid production. The asymmetric spindle arrangement creates a distinct flat tape structure, ideal for woven ribbons, elastic bands, and decorative trims used in apparel and accessories.
- Produces flat tapes and ribbons
- Supports elastic and non-elastic yarns
- Typical spindle counts: 9, 11, 13, 15, 17...
- Adjustable tension for consistent braid quality
- Suitable for narrow fabric and garment trims
- Low noise, energy-efficient motor drive
Even-Spindle Braiding Machine
The symmetric spindle configuration enables production of hollow flat cords and core-filled ropes. By feeding a core yarn through the center, manufacturers can produce shoelaces, drawcords, safety ropes, and industrial cords with superior strength and finish.
- Produces hollow flat cords and round ropes
- Core-feeding system for filled-core ropes
- Typical spindle counts: 8, 12, 16, 24, 32, 48...
- Supports elastic and non-elastic structures
- High-speed operation for mass production
- Interchangeable bobbins for quick material change

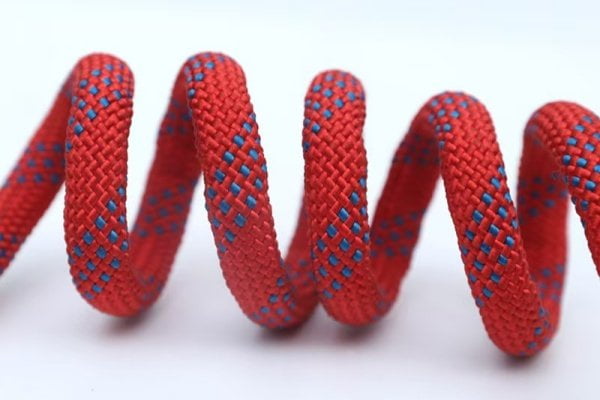

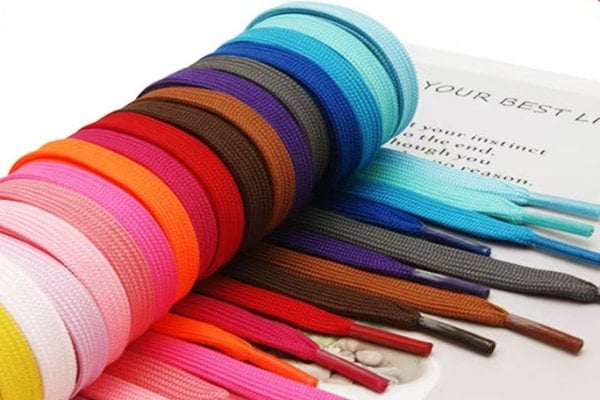

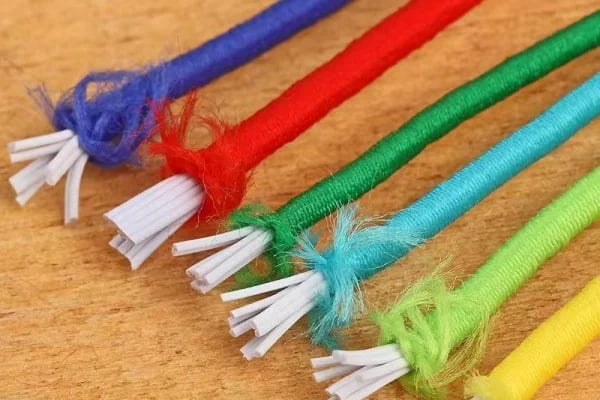

Braided Rope Type
A selection of ropes and cords produced by MIIYOUNG braiding machines -- from elastic apparel trims to industrial load-bearing lines.
Rope Twisting Machine

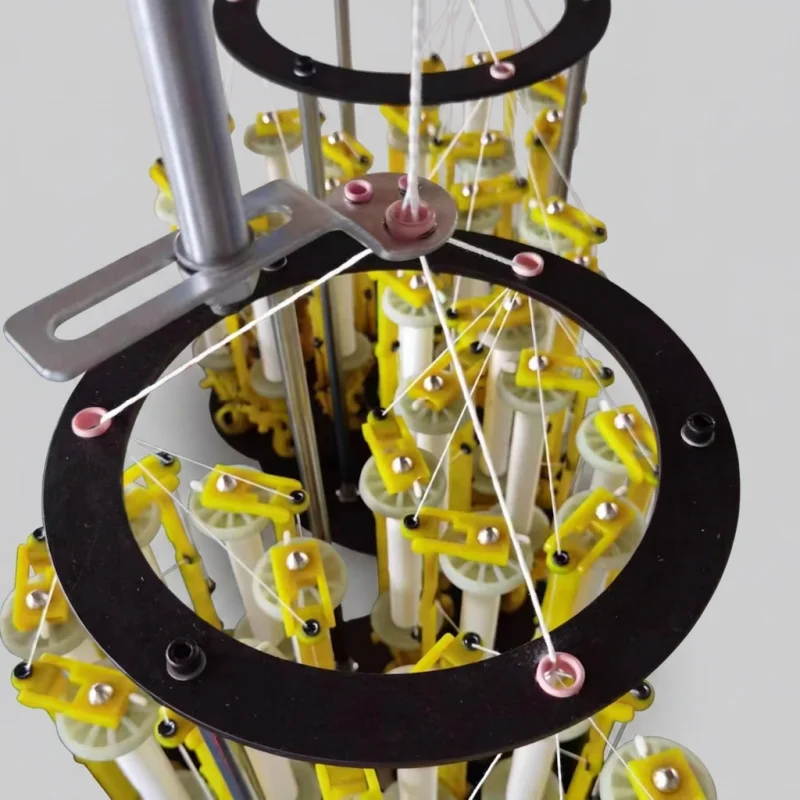

18-Spindle Rope Twisting Machine
A high-performance, industrial-grade rope twisting machine engineered for continuous production of 3-strand twisted rope. Built for apparel, packaging, industrial, and medical applications -- with full customisation support.

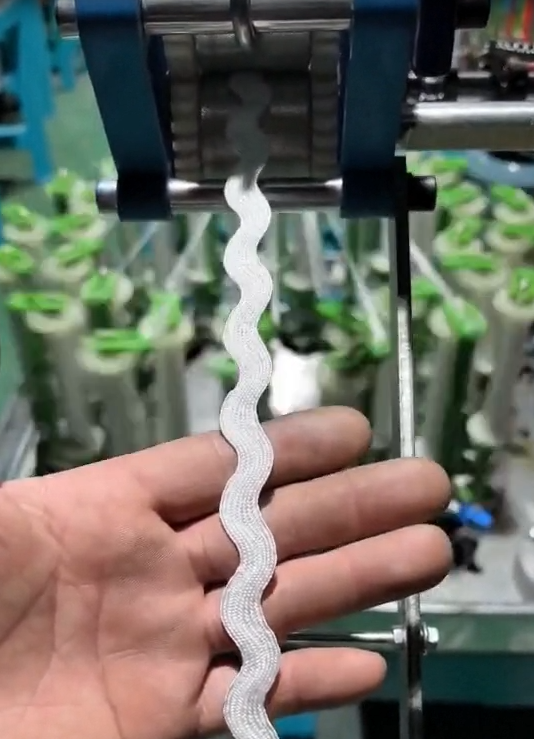

Zig Zag Braiding Machine
The MIIYOUNG Zig Zag Braiding Machine is engineered to produce distinctive wave-pattern flat braided tapes -- a signature output recognized for its eye-catching zigzag texture and structural flexibility. Trusted by manufacturers across South America, Africa, and Central Asia, this machine delivers consistent quality at high production speeds.
Its unique carrier movement mechanism creates the characteristic zig-zag interlacing structure, resulting in flat tapes with enhanced lateral flexibility, decorative appeal, and superior dimensional stability compared to conventional flat braids.
Custom Service Consultation
& Dimensions
Spool Size
Functions
& Order
Step 1 -- Rope Pattern & Dimensions
Select the braiding pattern and specify the rope dimensions you need to produce.
Rope / Cord Pattern
Rope Dimensions & Material
Step 2 -- Bobbin / Spool Size
Select the bobbin or spool size that matches your yarn supply. The right bobbin size ensures optimal machine configuration and spindle capacity.
Recommended bobbin sizes based on your rope diameter. Select the one that matches your yarn supply.
Step 3 -- Confirm Machine Functions
Review the recommended machine configuration and confirm the functions that meet your production needs.
| Specification | Value / Range | Notes |
|---|
💡 Engineer Tip: Our team recommends pairing the machine with an automatic take-up winder and tension control unit for maximum line efficiency. We will discuss the full production line during your consultation.
Step 4 -- Confirm & Arrange Production
Review your complete requirements and submit your inquiry. Our engineers will respond within 24 hours with a detailed quotation and production plan.
Fields marked * are required.
Fully Customizable to Your Needs
No two production lines are identical. Tell us your target product, material, and output volume -- our engineering team will configure or custom-build the right braiding machine for your operation.
Discuss Your Custom RequirementsReady to Upgrade Your Braiding Production?
Contact our team in Linhai, Zhejiang via WhatsApp, WeChat, or email. We respond promptly and provide detailed technical proposals at no charge.
